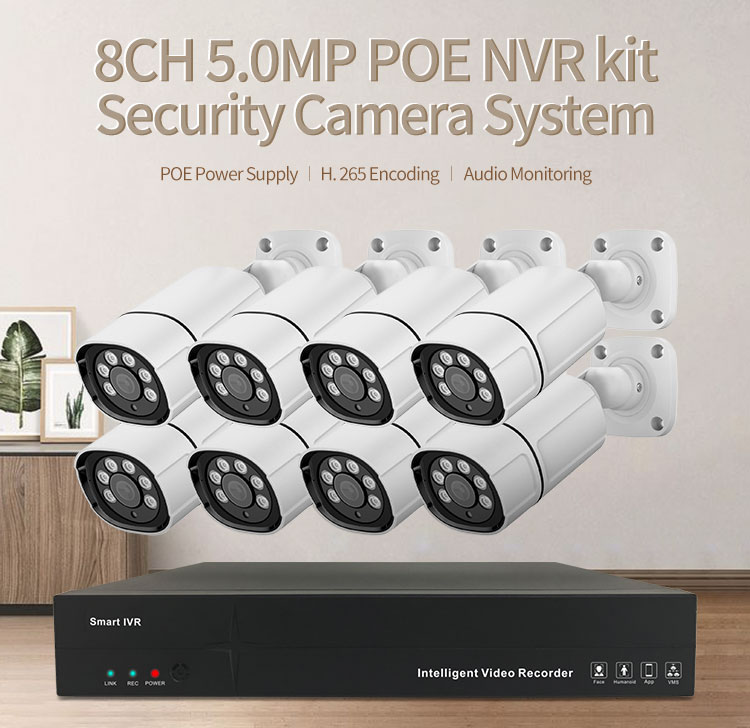

5MP 8CH NVR Outdoor Security Remote HD IP Motion Detection Bullet Waterproof POE CCTV Camera System
$425.00
Description
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#aba8a8;font-family:Georgia;font-size:32px;color:#000;background-color:#aba8a8;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px;padding-left:13px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-4{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-5{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:694px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{display:none}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:547.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:126.2px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:546.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{width:750px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:240px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:-128px;margin-left:-8px;width:749px;height:562px}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:714px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:110px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:144px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:50px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:491px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:109px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:584px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:713.2px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:48px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:75px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:97px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:96px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:46px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:128px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:18px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:116px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:178px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:514px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:78px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:83px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:711px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:115px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:139px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px;padding:5px 10px;width:488px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-41{min-height:28px;padding:5px 10px;width:114px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-42{min-height:28px;padding:5px 10px;width:576px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-43{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-44{margin-bottom:0}#detail_decorate_root .magic-45{position:relative;width:100%}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:730px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:730px}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:796px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:750px;height:796px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:469px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:469px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:723px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:723px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:810px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;height:810px}#detail_decorate_root .magic-56{border-bottom-style:solid;border-bottom-color:#aba8a8;font-family:Georgia;font-size:32px;color:#000;background-color:#aba8a8;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px;padding-left:14px}#detail_decorate_root .magic-57{overflow:hidden;width:750px;height:1360px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-58{margin-top:0;margin-left:0;width:750px;height:1360px}#detail_decorate_root .magic-59{border-bottom-style:none;border-bottom-color:#aba8a8;font-family:Georgia;font-size:32px;color:#000;background-color:#aba8a8;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px;padding-left:13px}#detail_decorate_root .magic-60{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-62{overflow:hidden;width:750px;height:470px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-63{margin-top:-6px;margin-left:0;width:750px;height:500.00000000000006px}#detail_decorate_root .magic-64{font-size:24px}#detail_decorate_root .magic-65{text-align:left}#detail_decorate_root .magic-66{font-size:14px}#detail_decorate_root .magic-67{overflow:hidden;width:184.5px;height:246px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-68{margin-top:0;margin-left:0;width:184px;height:246px}#detail_decorate_root .magic-69{overflow:hidden;width:184.5px;height:246px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-70{margin-top:-1.002717391304348px;margin-left:-102.27717391304348px;width:353px;height:245px}#detail_decorate_root .magic-71{margin-top:2.005434782608696px;margin-left:-121.3288043478261px;width:436px;height:245px}#detail_decorate_root .magic-72{margin-top:1.002717391304348px;margin-left:-65.17663043478261px;width:436px;height:245px}#detail_decorate_root .magic-73{font-size:16px}
Product Paramenters
Features
* Resolution 4mp/5mp (2560×1440@25fps@4mp; 2560×1920@20fps@5mp)
* Built-in Humanoid Detection algorithm;
* Detection frame 5fps, detect 5 people at the same time;
* Low consumption,low code stream, low delay;

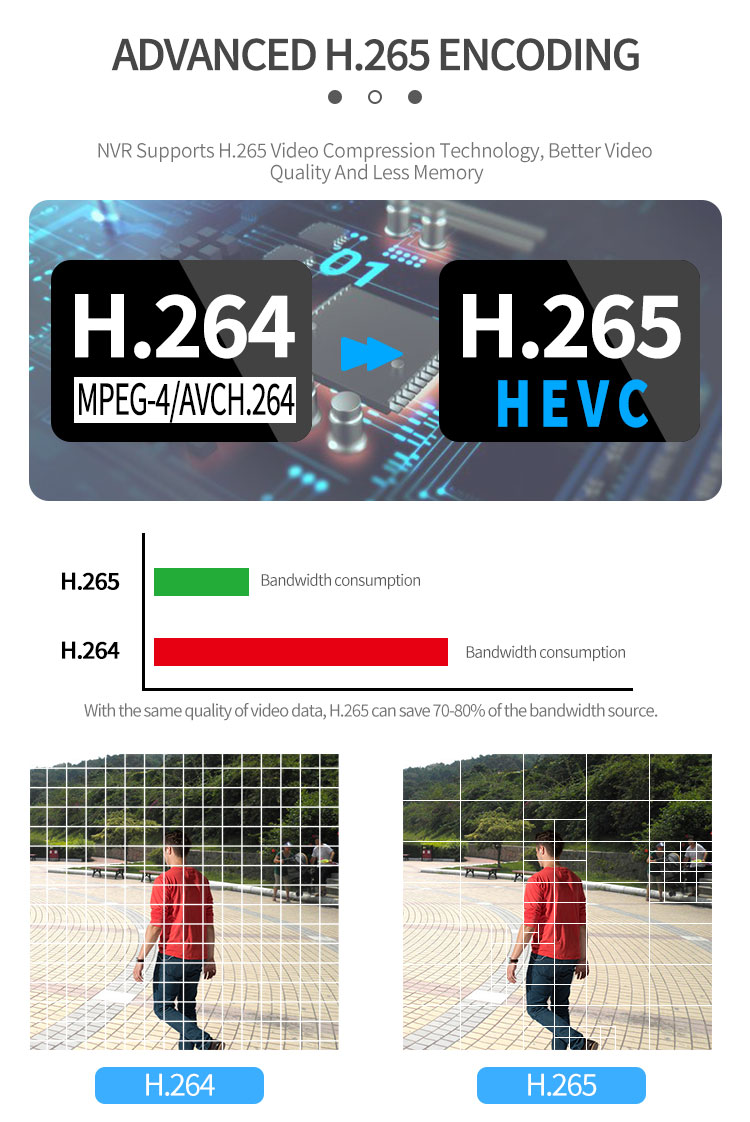

* 265 compression format, save bandwidth and storage space;
* Support Smart IR to avoid Infrared over-exposure at night;
* Support ICR auto switch, achieve best result for D&N video;
* Support PoE (option)
* Support 3D DNR and digital WDR;
* Support auto-electronic shuttle to suit different surveillance environment
* Support two-way audio intercom
* Support HTTPS encrypted transmission
*Support Onvif, email, NTP service
* Built-in Humanoid Detection algorithm;
* Detection frame 5fps, detect 5 people at the same time;
* Low consumption,low code stream, low delay;
* 265 compression format, save bandwidth and storage space;
* Support Smart IR to avoid Infrared over-exposure at night;
* Support ICR auto switch, achieve best result for D&N video;
* Support PoE (option)
* Support 3D DNR and digital WDR;
* Support auto-electronic shuttle to suit different surveillance environment
* Support two-way audio intercom
* Support HTTPS encrypted transmission
*Support Onvif, email, NTP service
*Change the password during initial use to ensure the security of the password
|
Camera
|
||
|
DSP
|
T31X
|
|
|
Sensor
|
Color 1/2.7″ Low Illumination CMOS Sensor GC4653
|
|
|
Lens
|
Support fixed lens and manual varifocal lens
|
|
|
D&N
|
ICR Switch, Auto/Color/B&W/CDS Trigger
|
|
|
D-WDR
|
D-WDR (off/low/middle/high)
|
|
|
IR Led Control
|
Auto/Manual/Off
|
|
|
3D DNR
|
Off/Low/Middle/High/Higher
|
|
|
Defog
|
Off/Low/Middle/High
|
|
|
Mirror
|
Off/ Horizontal Mirror/Vertical Mirror/180-degree flip
|
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Saturation, Chroma
|
|
|
Humanoid Detection
|
||
|
Detection Quantity
|
≤5 people humanoid
|
|
|
Humanoid Size
|
Humanoid Pixel ≥ 40*40
|
|
|
Detection Ratio
|
≥99% (meet above requirement)
|
|
|
Capture Corresponding Speed
|
≤1s
|
|
|
Max Detection Frame
|
5fps/s
|
|
|
Fault Detection Ratio
|
≤2%
|
|
|
Detection Part
|
People with any posture including half body, head, hand, shoulder
|
|
|
Track People
|
Support
|
|
|
Detection Mode
|
Support static and dynamic humanoid detection
|
|
|
Detection method
|
Image detection during day time or night time with lights or IR LEDs
|
|
|
Detection Area
|
Appointed area, default full-screen
|
|
|
Upload Method
|
Upload it under private protocol
|
|
|
Trigger Method
|
Video trigger
|
|
|
Audio & Video Encoding
|
||
|
Video Encode Standard
|
H.265/H.264
|
|
|
Encoding Feature
|
Main stream: 5MP 2560×1920@20fps, 4MP 2560×1440@25fps
Sub-stream: D1(720*576), VGA (640*360) |
|
|
Max resolution
|
5MP 2560×1920@20 fps
|
|
|
Video Code Rate
|
Fixed code rate, variable code rate (Main stream: 160Kbps-4000kbps)
|
|
|
Video Type
|
Composited stream/video stream
|
|
|
Audio Standard
|
G.711u / 64Kbps
|
|
|
Network Function
|
||
|
Protocol
|
TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP
|
|
|
Connection Protocol
|
ONVIF, GB28181 (Option)
|
|
|
Security Mode
|
Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification
|
|
|
Motion Detection
|
Set detection area, can set multi-level sensitivity
|
|
|
Privacy Mask Alarm
|
Support 1 area
|
|
|
Privacy Mask
|
Support 4 areas
|
|
|
Schedule Linkage
|
Snapshot, email
|
|
|
Device abnormal Inspection
|
Support network broken alarm, IP conflict alarm, illegal visiting alarm
|
|
|
Character Overlay (OSD)
|
Title, time and date overlay, multi-line, and color of characters optional
|
|
|
Port
|
||
|
Network Port
|
RJ45 10M/100M network self-adaptation
|
|
|
Audio
|
MIC Input/ Output
|
|
|
General
|
||
|
Power Supply
|
DC12V /PoE (option)
|
|
|
Size
|
38*38mm
|
|
|
Working Temperature
|
-10°C ~ 50°C
|
|
|
Working Humidity
|
0﹪~90﹪
|
|

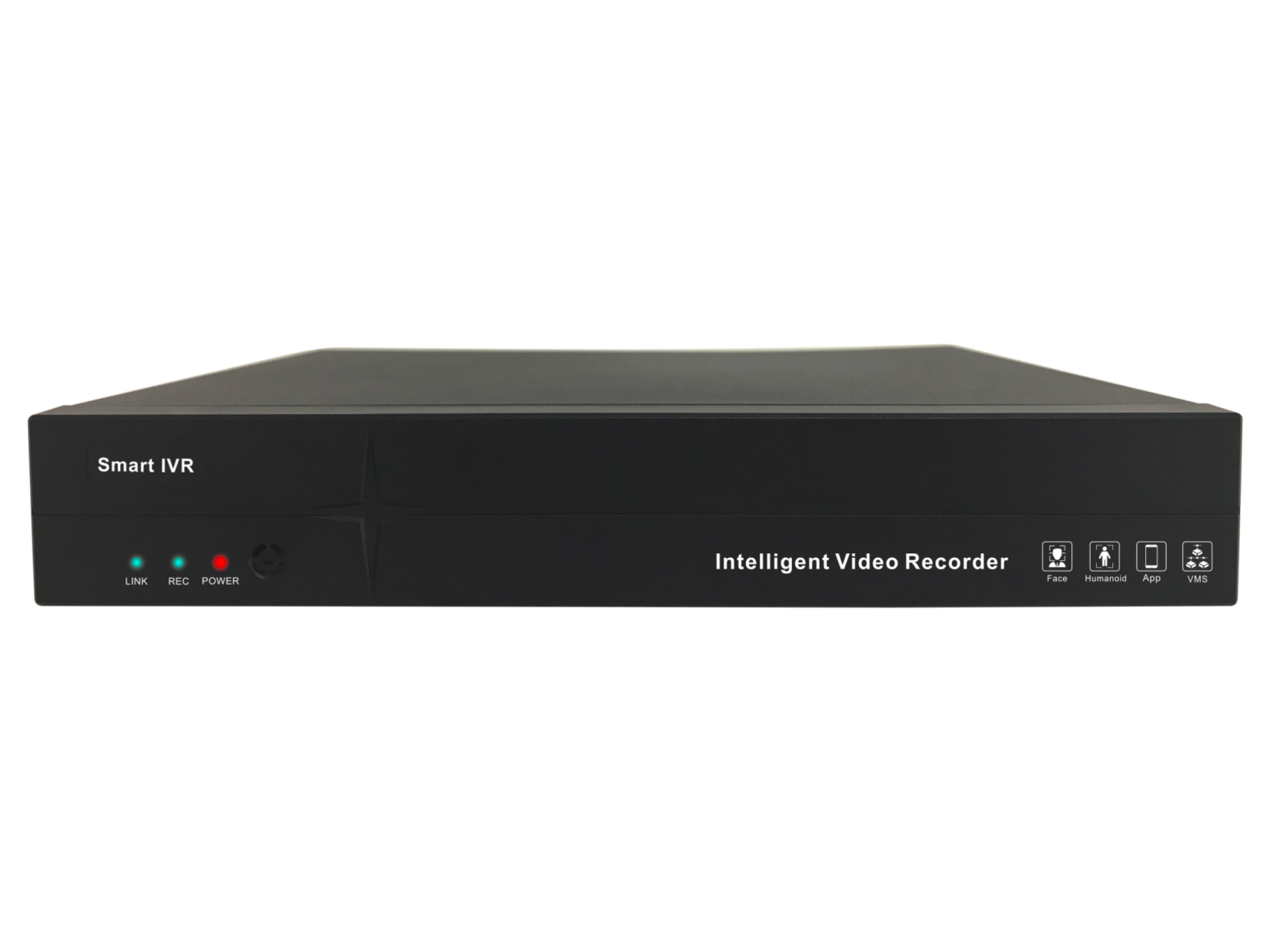

1.h.265+/H.265/H.264 triple stream decoding, embedded Linux operating system 2.Support 8CH 5MP POE IPC input, IPC centralized management, including IPC parameter configuration, information export and import, real-time information acquisition and upgrade, etc. 3.Support our Smart IPC: Humanoid Detection,target count, absent alarm, retrograde motion detection, E-bike detection, area intrusion. 4.Support synchronous recording, remote monitoring, backup 5.HDMI,VGA synchronous output, support 4K preview ( 9 CH mode) 6.Support preview image and playback image 12 times electronic magnification 7.Standard ONVIF, SLINK, RTSP ,GB28181protocol 8.Support DDNS, EMAIL, UPNP, P2P and other functions 9.Support WEB, mobile phone monitoring, client, VMS monitoring 10.Supports disk grouping quotas and disk group storage modes 11.Support channel grouping, preview tour 12.Supports maximum 4CH 1080P recording synchronous playback and multi-channel synchronous playback 13.Support double password authentication 14.Support network monitoring: network traffic, network delay packet loss test, network packet capture backup 15.Support current bandwidth, stream information,support multiple language
|
System
|
||||||||||||||||
|
Main Chipset
|
621Q
|
|||||||||||||||
|
Operating System
|
Embedded Linux
|
|||||||||||||||
|
Bandwidth
|
40M
|
|||||||||||||||
|
Video Format
|
H.265+/H.265/H.264
|
|||||||||||||||
|
Video Resolution
|
5MP/3MP/720p/D1/VGA/CIF/QCIF
|
|||||||||||||||
|
Smart Functions
|
Humanoid Detection,target count, absent alarm, retrograde motion detection, E-bike detection, area intrusion.(need front end IPC supported)
|
|||||||||||||||
|
Record Mode
|
Manual, Schedule, Motion Detection, Timing, Alarm, Stop
|
|||||||||||||||
|
Playback
|
4CH 1080P and 1CH 5MP playback
|
|||||||||||||||
|
Backup Mode
|
USB Device/Network
|
|||||||||||||||
|
Video, Audio, Alarm
|
||||||||||||||||
|
Normal Mode
|
16 CH normal IPC ( or humanoid detection IPC)
|
|||||||||||||||
|
Split
|
1
|
4
|
6
|
8
|
9
|
16
|
||||||||||
|
Decode
|
5MP
|
4*1080P
|
1*1080P+5*D1
|
1*1080P+7*D1
|
9*D1
|
16*D1
|
||||||||||
|
Video Output
|
1 HDMI, 1 VGA
|
|||||||||||||||
|
Audio Output
|
HDMI audio
|
|||||||||||||||
|
Alarm Input & Output
|
N/A
|
|||||||||||||||
|
Storage
|
||||||||||||||||
|
HDD
|
1 SATA, MAX 6TB HDD
|
|||||||||||||||
|
E-Sata
|
N/A
|
|||||||||||||||
|
Network
|
||||||||||||||||
|
Network Interface
|
1*RJ45 10M/100M self-adaptive LAN port
|
|||||||||||||||
|
POE
|
8 CH, 10/100Mbps self-adaptive Ethernet port, IEEE802.3af, 52W
|
|||||||||||||||
|
Network Function
|
DDNS,EMAIL,UPNP,NTP,DHCP,IP Filter,PPPoE,P2P
|
|||||||||||||||
|
Smart Phone
|
iPhone, Android
|
|||||||||||||||
|
External Ports
|
||||||||||||||||
|
USB
|
2 USB Ports(2 USB2.0)
|
|||||||||||||||
|
RS232
|
N/A
|
|||||||||||||||
|
RS485
|
N/A
|
|||||||||||||||
|
Others
|
||||||||||||||||
|
Power Supply
|
DC52V 2.3A
|
|||||||||||||||
|
Power Consumption
|
≤10W(without HDD )
|
|||||||||||||||
|
Dimension
|
Equipment: 450X240X70mm, Packing: 290X70X300mm
|
|||||||||||||||
|
Weight
|
N.W.: 1.2Kg; With Package: 1.4Kg
|
|||||||||||||||
|
Outside Carton
|
10 pcs/Carton. 595mm×368mm×325mm; Weight: 15Kg
|
|||||||||||||||
Product Description

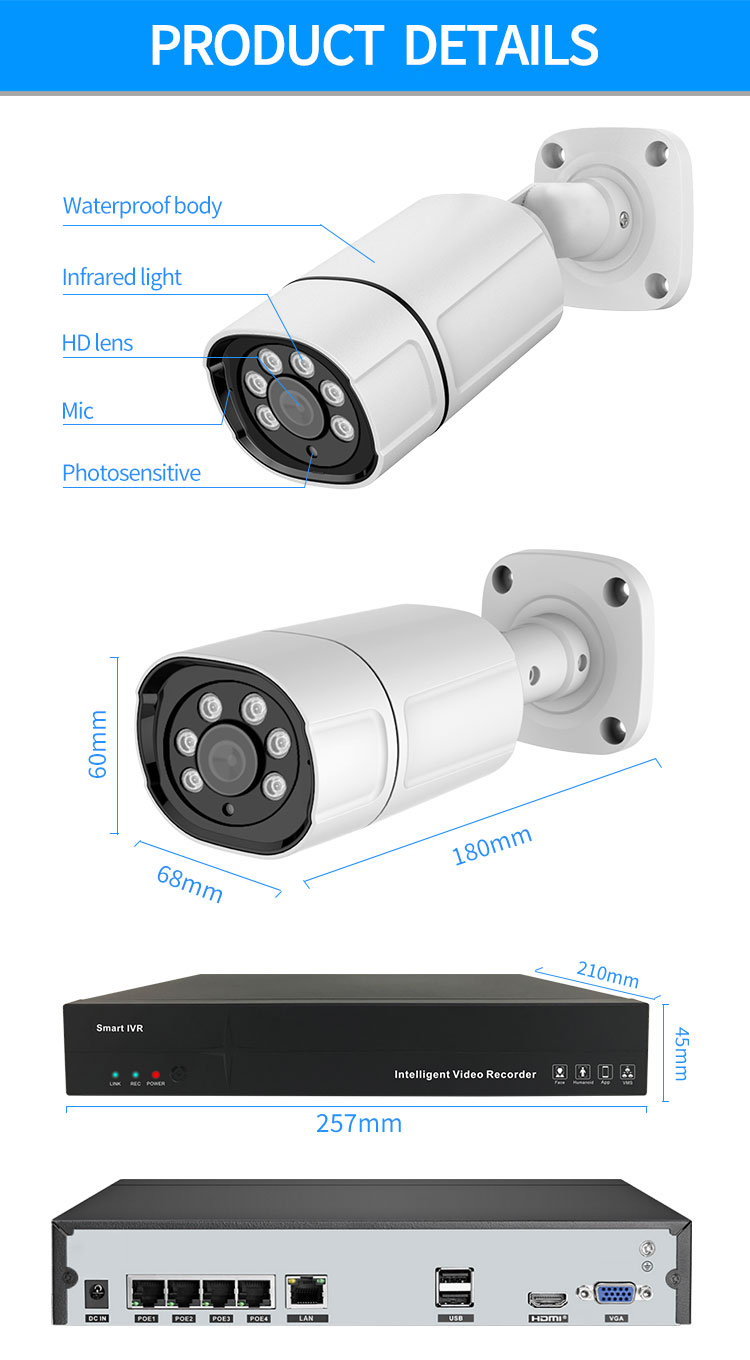

Detailed Images
Certificate

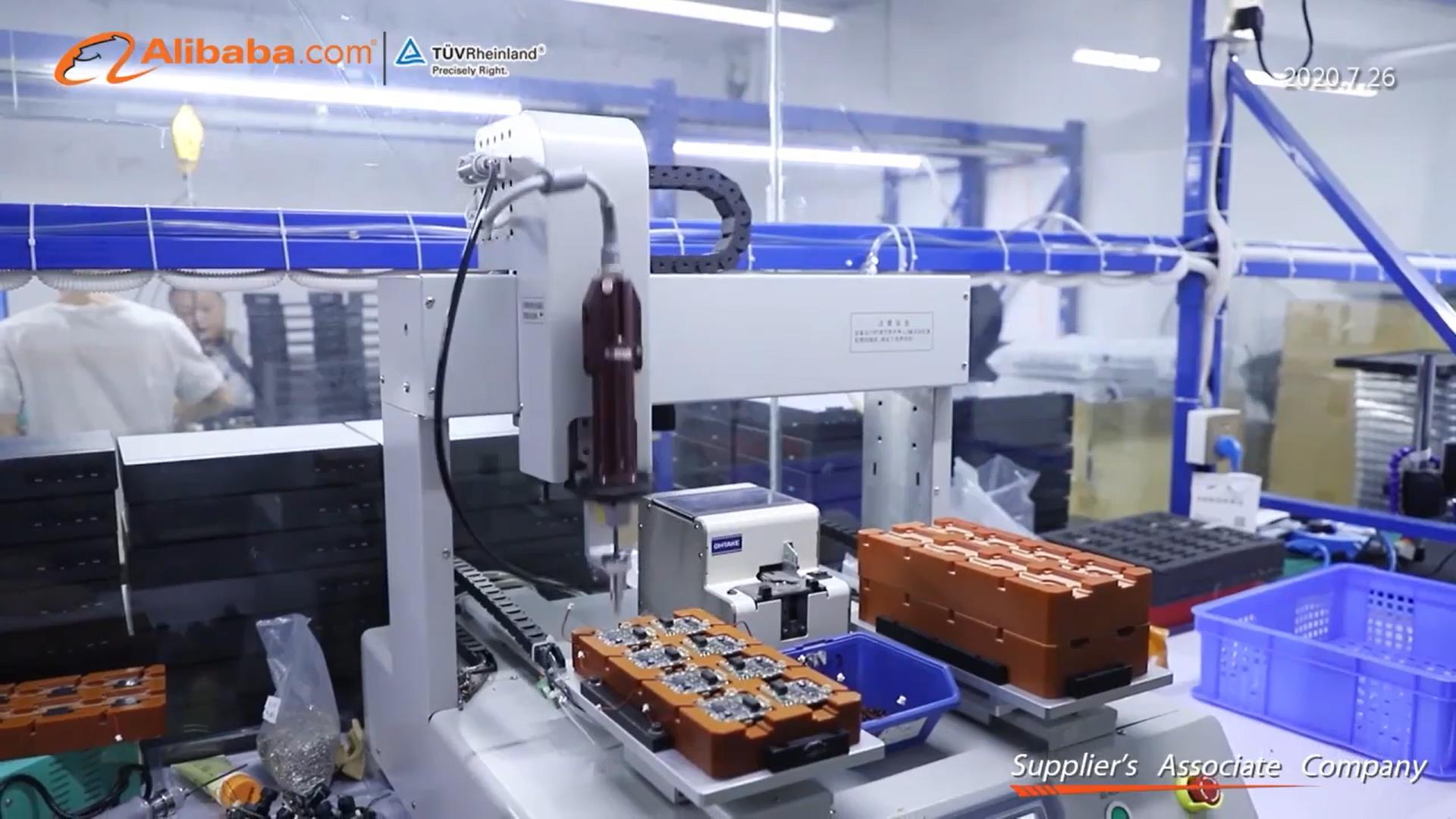

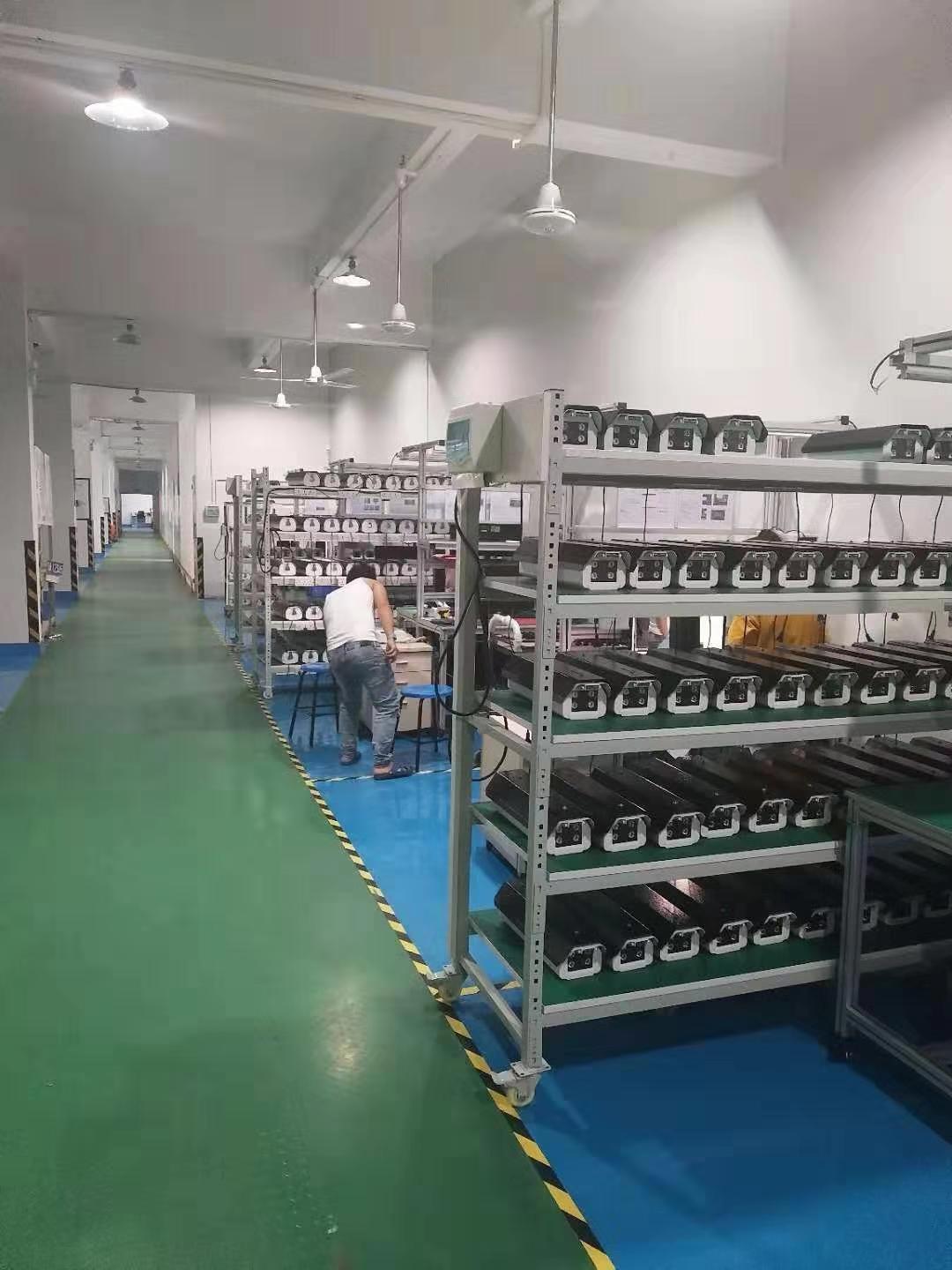

Company Introduction
Shenzhen Pasensi Technology Co., Ltd
Shenzhen Pasensi Technology Co., Ltd. was established in 2008. Since the establishment of the company, it has always focused on the work of security engineering The company relies on its own professional technical background and human resources advantages to provide equipment and construction drawing design for the majority of users. The bidding documents are compiled into complete security system collection services such as engineering design, construction, maintenance and upgrade. The company has security engineering enterprise qualification, computer information system integration qualification, quality management system certification. At present, it has strong technical strength and rich experience in the fields of telephone exchange system, IT outsourcing system, telecom line access system, integrated wiring system, security system, etc., and successfully completed many security engineering projects and established a good Corporate image and brand image. Security Engineering Company provides enterprise customers with the most cost-effective integrated services of weak electricity and undertakes CCTV monitoring system, intelligent building control system, emergency (command, rescue)system, safe city remote monitoring system, anti-theft alarm system, access control attendance system, network communication. Weak power projects such as systems and integrated wiring projects, and are responsible for technical consulting, engineering planning and design engineering installation and commissioning, and system maintenance related to these projects. Excellent service and excellent product quality have been recognized by customers and brought a broader development space and economic benefits to the company.
FAQ
Q: How long is the warranty?
A: All goods have been checked before dispatch. Warranty for 1 year, lifetime technical service.
A: All goods have been checked before dispatch. Warranty for 1 year, lifetime technical service.
Q: How long is the delivery time?
A: Within 5 business days (0-100pcs), within 7 business days (100-300pcs), within 15 business days (300- 1000pcs), within 30
business days (1000-3000pcs)
Q: What are the delivery ways ?
A: By Air / Sea / Express / Air mail.
Q: What are the payment methods ?
A: T/T, and PayPal.
Q: After-sales services ?
A: 1.All goods will be inspected and tested before shipment.
2.Customer’s satisfactory is most important to us. If you have any problem or questions regarding our transaction. Please contact
us by Trade manager or Skype. It will be responded within 24 hours.
Q: About OEM: could we place order by OEM style to produce our own brand products in China?
A:Of course you can. Welcome to do OEM
